13  Splitting Time Intervals

Event data that has a start and an end does not gel well with datetime aggregations when the events overlap multiple datetime periods. For example, if your user session started on August 1st but ended on August 3rd, you probably want to show that a session was happening on the 1st, 2nd and 3rd.

Warning: package 'duckdb' was built under R version 4.4.3

Warning: package 'ggplot2' was built under R version 4.4.3

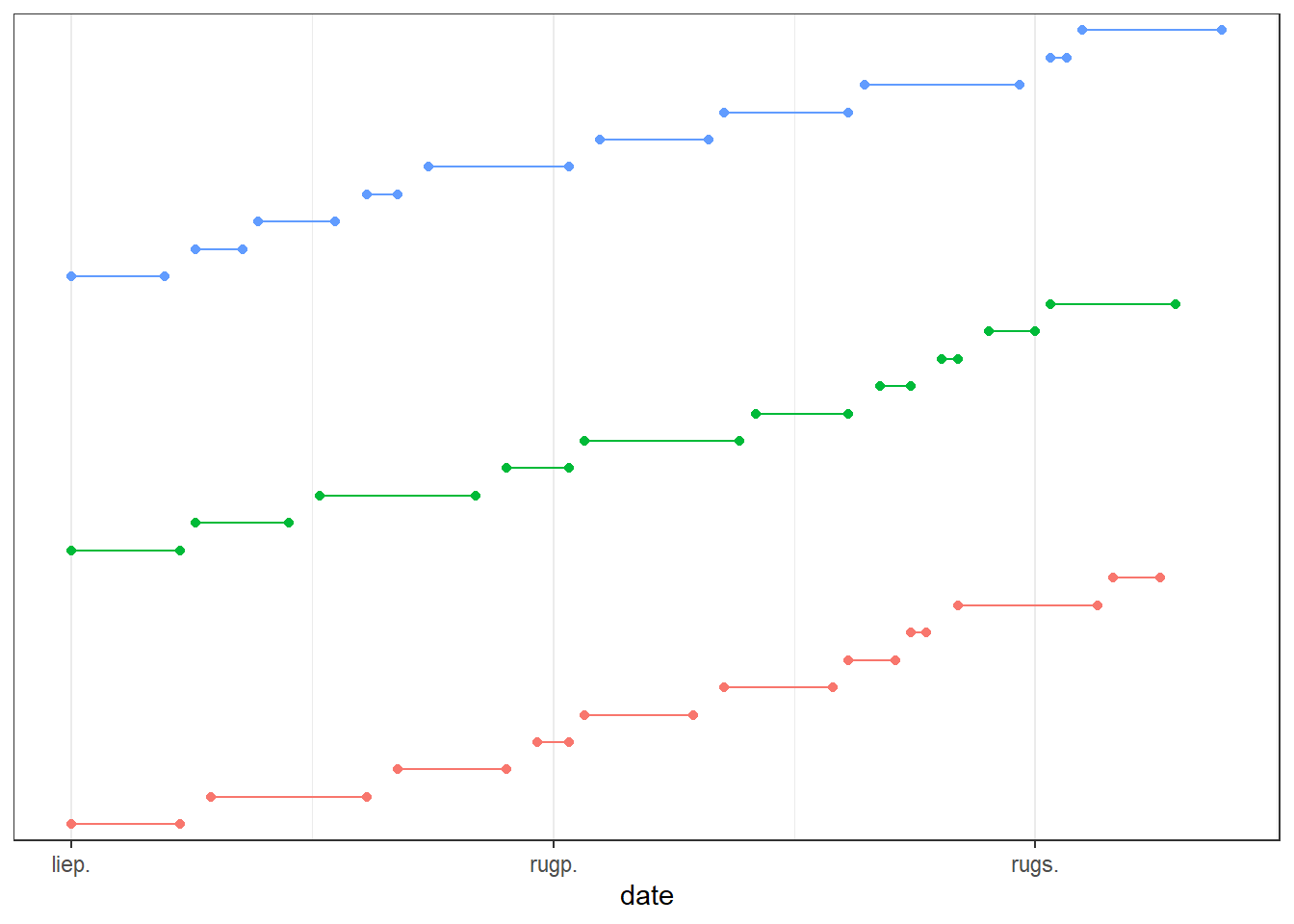

df <- generate_intervals()

df %>% plot_timeline()

Warning: The `<scale>` argument of `guides()` cannot be `FALSE`. Use "none" instead as
of ggplot2 3.3.4.

14 Grouping consecutive intervals

15 Grouping overlapping intervals

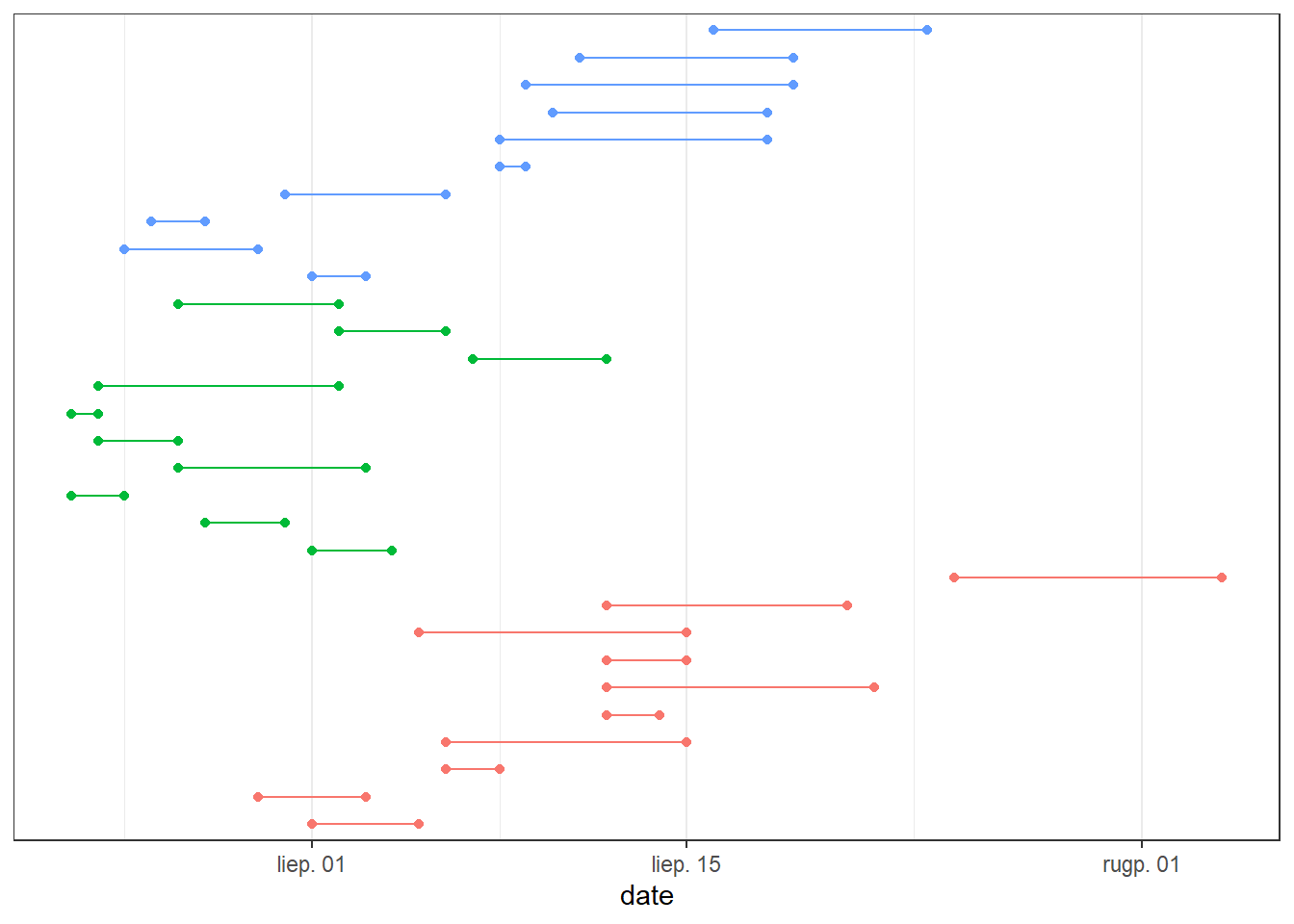

df <- generate_intervals(groups = 3, duration = 10, gaps = -10:5)

df %>% plot_timeline()

con <- dbConnect(duckdb::duckdb())

dbWriteTable(con, "overlapping_ranges", df, overwrite = TRUE)

WITH C1 AS(  SELECT *,    MAX(endtime) OVER(PARTITION BY actid          ORDER BY starttime, endtime, sessionid          ROWS BETWEEN UNBOUNDED PRECEDING AND 1 PRECEDING) AS prvend  FROM dbo.Sessions)SELECT *FROM C1  CROSS APPLY ( VALUES(CASE WHEN starttime <= prvend THEN NULL ELSE 1 END) ) AS A(isstart);

with prev_date as (
SELECT
  ROW_NUMBER() OVER (ORDER BY group_id, date_from, date_to) AS date_rank,
  group_id,
  date_from,
  date_to,
  MAX(date_to) OVER (PARTITION BY group_id ORDER BY date_from, date_to ROWS BETWEEN UNBOUNDED PRECEDING AND 1 PRECEDING) AS previous_date_to
FROM
  overlapping_ranges
),
islands as (
SELECT
 *,
 CASE WHEN previous_date_to >= date_from THEN 0 ELSE 1 END AS island_start_id,
 SUM(CASE WHEN previous_date_to >= date_from THEN 0 ELSE 1 END) OVER (ORDER BY date_rank) AS island_id
from prev_date
)
select
  group_id,
  cast(island_id as varchar) as island_id,
  min(date_from) as date_from,
  max(date_to) as date_to
from islands
group by group_id, island_id

df %>%
  plot_timeline() +
  facet_grid(group_id~.) +
  geom_rect(data = overlapping_islands %>% filter() %>% mutate(island_id = as.character(row_number())), aes(y = NULL, x = NULL, ymin = date_from, ymax = date_to, xmin = -Inf, xmax = Inf, fill = island_id), alpha = 0.05)

16 Grouping when intervals are within some distances

Let’s say our data looks like this:

dbWriteTable(con, "sessions", sessions, overwrite = TRUE)

select *
from sessions
limit 6

In this example, how do you properly aggregate by hour? By using a tally table!

16.1 The correct approach using a tally table

The correct approach is to use a tally table or a reference table with specified hours. A tally table is a technique created by Itzik Ben-Gan in 2009 that uses recursive CTEs to create an index table fast. Here’s an example of it:

GO

CREATE FUNCTION dbo.GetNums(@n AS BIGINT) RETURNS TABLE AS
RETURN

WITH
L0   AS(SELECT 1 AS c UNION ALL SELECT 1),
L1   AS(SELECT 1 AS c FROM L0 AS A CROSS JOIN L0 AS B),
L2   AS(SELECT 1 AS c FROM L1 AS A CROSS JOIN L1 AS B),
L3   AS(SELECT 1 AS c FROM L2 AS A CROSS JOIN L2 AS B),
L4   AS(SELECT 1 AS c FROM L3 AS A CROSS JOIN L3 AS B),
L5   AS(SELECT 1 AS c FROM L4 AS A CROSS JOIN L4 AS B),
Nums AS(SELECT ROW_NUMBER() OVER(ORDER BY (SELECT NULL)) AS n FROM L5)

SELECT n FROM Nums WHERE n <= @n;

GO

I couldn’t find a good enough explanation of why they are fast (best case is here), so I would appreciate a link! In this post, I am simply resorting to DuckDB to generate series of hourly intervals:

CREATE TABLE calendar_hours as
with start_times as (
  SELECT *
  FROM generate_series(DATE '2024-07-30', DATE '2024-08-10', INTERVAL '1' HOUR)
)
select
  generate_series as start_time,
  lead(generate_series,1) over (order by generate_series) - interval '1' MINUTE as end_time
from start_times

Now that we have a reference table of hourly intervals, we can run a range join:

CREATE TABLE session_intervals as
select
  case when session_start > start_time then session_start else start_time end as session_start,
  case when session_end < end_time then session_end else end_time end as session_end
from calendar_hours
inner join sessions
  on start_time <= session_end
  and end_time >= session_start

The query above uses date intersection, wherein we join the calendar table to our session table using a range join. Without the range join, we would end up with a cross join, combining all rows from both tables together. The range join filters down our output to only rows where the “ends” from each interval overlaps:

                        |---- session ------|
|---calendar hour --------|

        |---- session ------|
                          |---calendar hour --------|

The end of the calendar hour overlaps with the start of the session in the first example. In the second one, the end of the session overlaps with the start of the calendar hour.

Having built this, we can finally aggregate our data correctly:

16.2 The final output

select
  cast(session_start as date) as session_day,
  sum(datediff('minute',session_start,session_end)) as session_duration
from session_intervals
group by cast(session_start as date)
